ERA DC-601

DC-601 mini 21″ – 24W LED RGB + 10W Tranquil Light

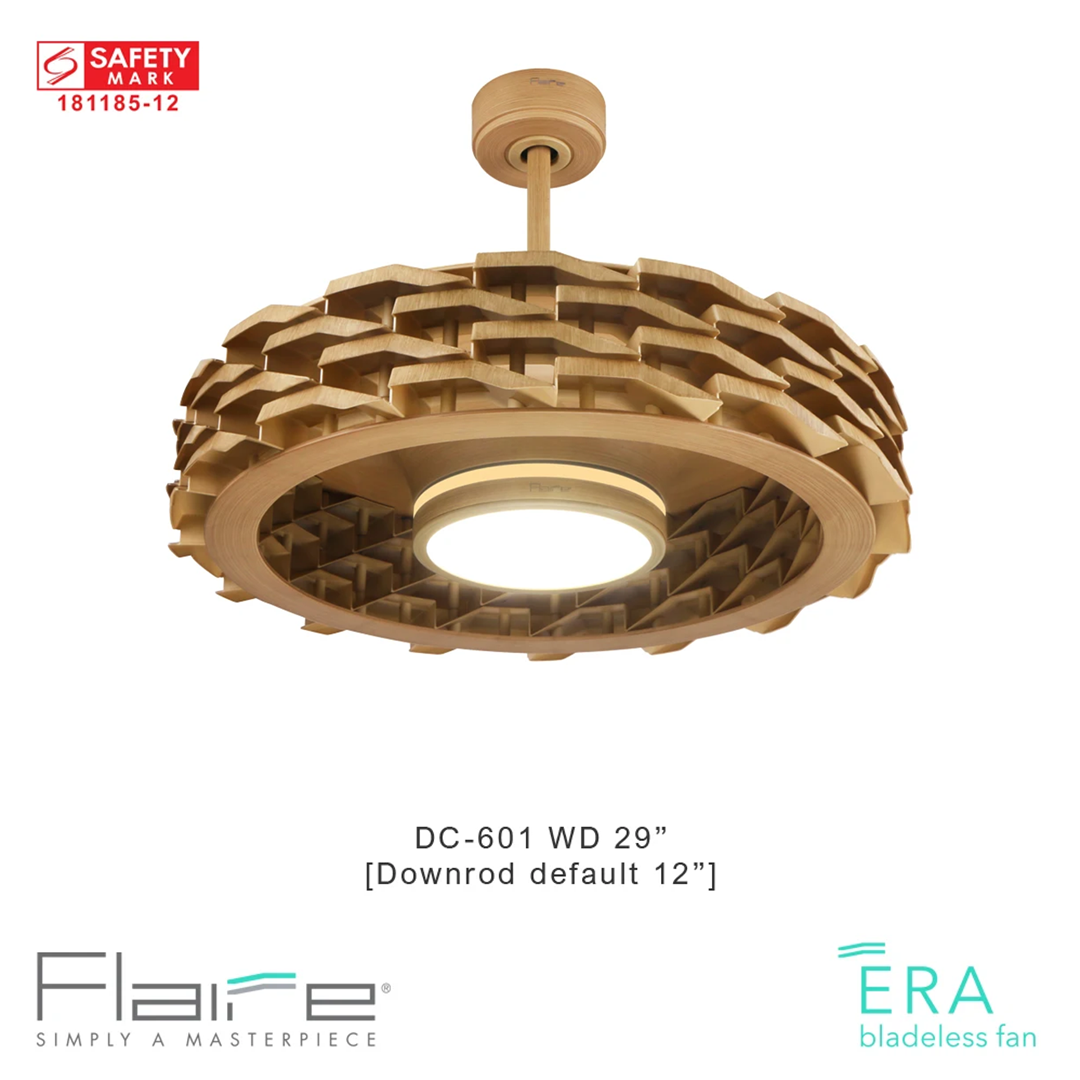

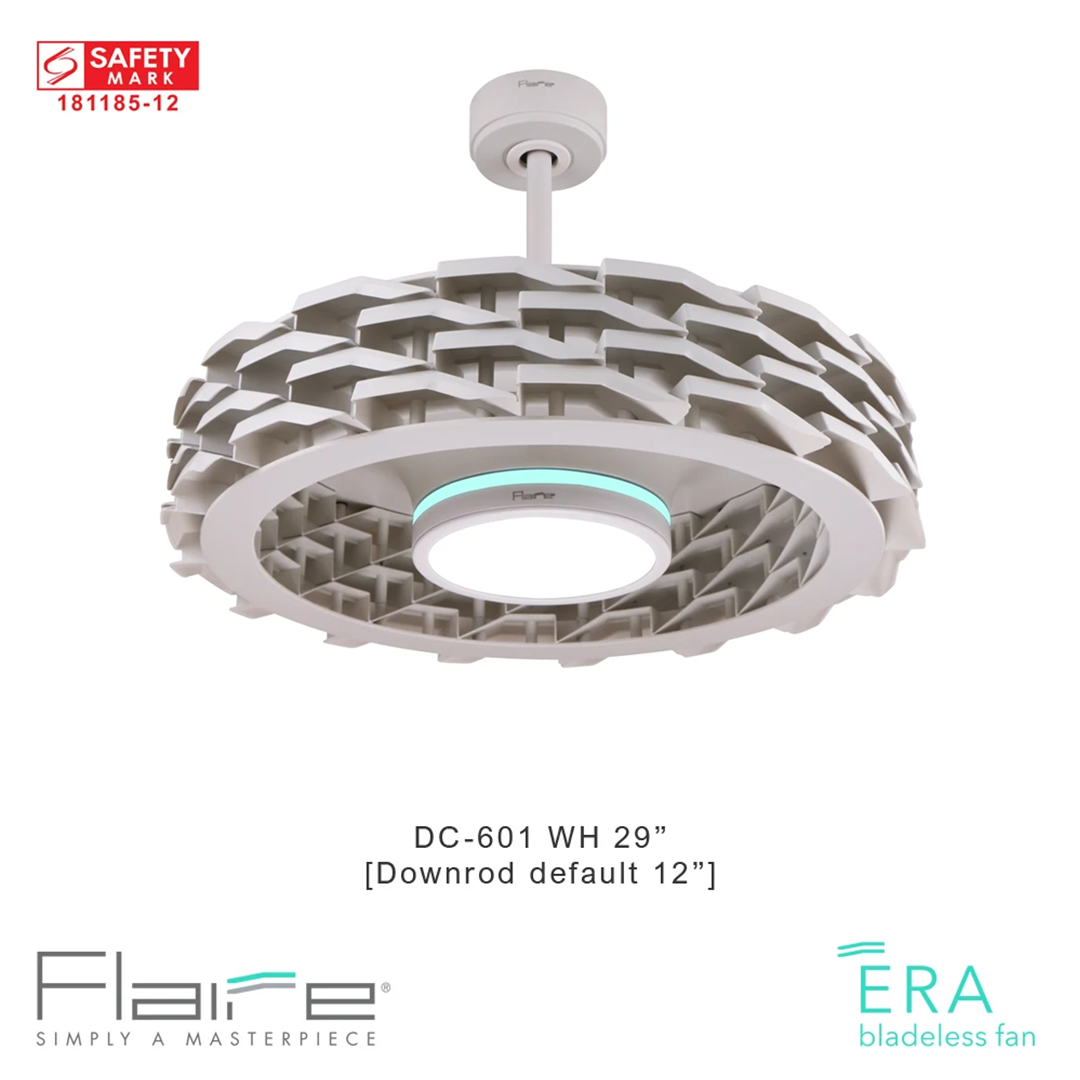

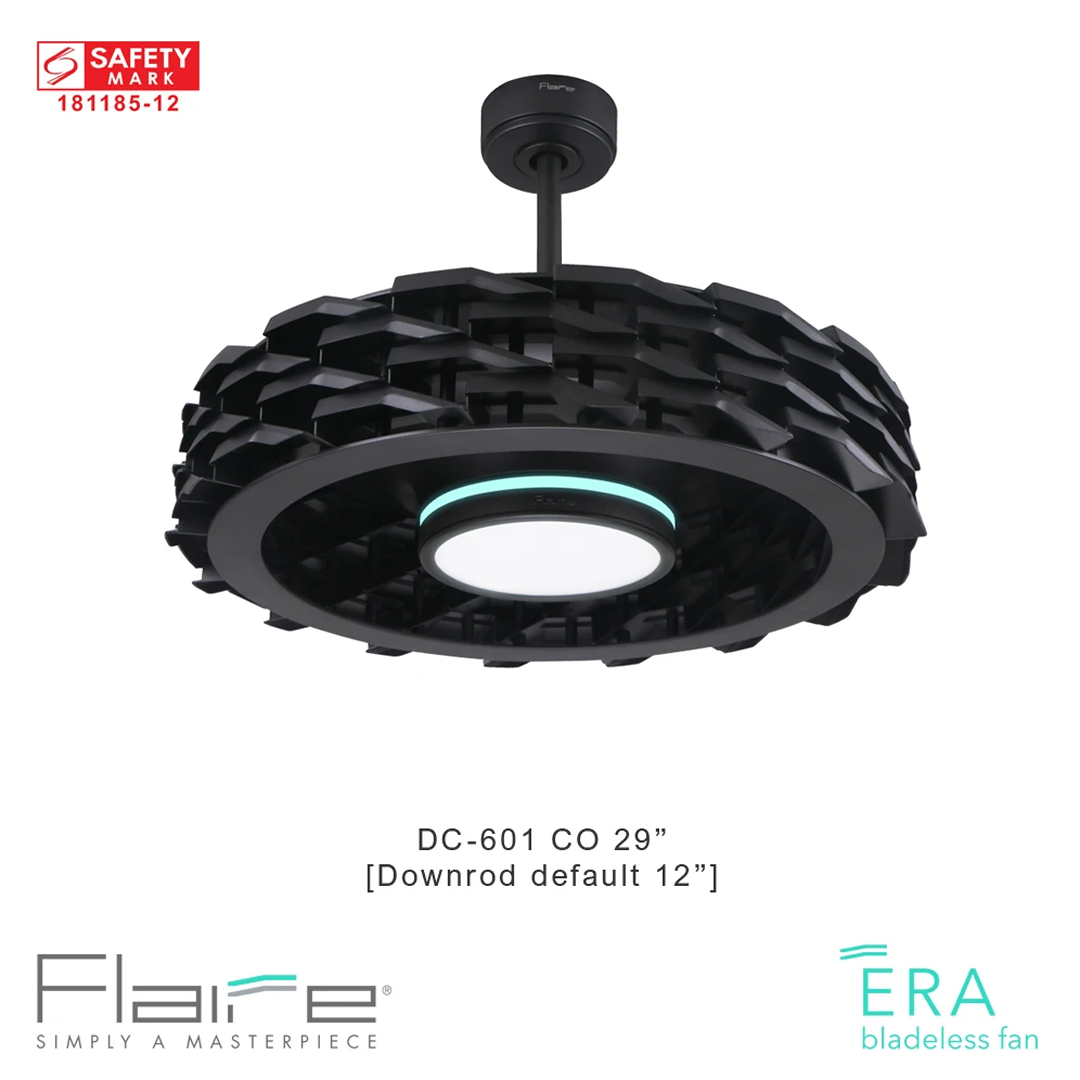

DC-601 29″ – 36W LED RGB + 15W Tranquil Light

Price range: $1,690.00 through $1,890.00

Warranty

Ceiling Type

Installation Method

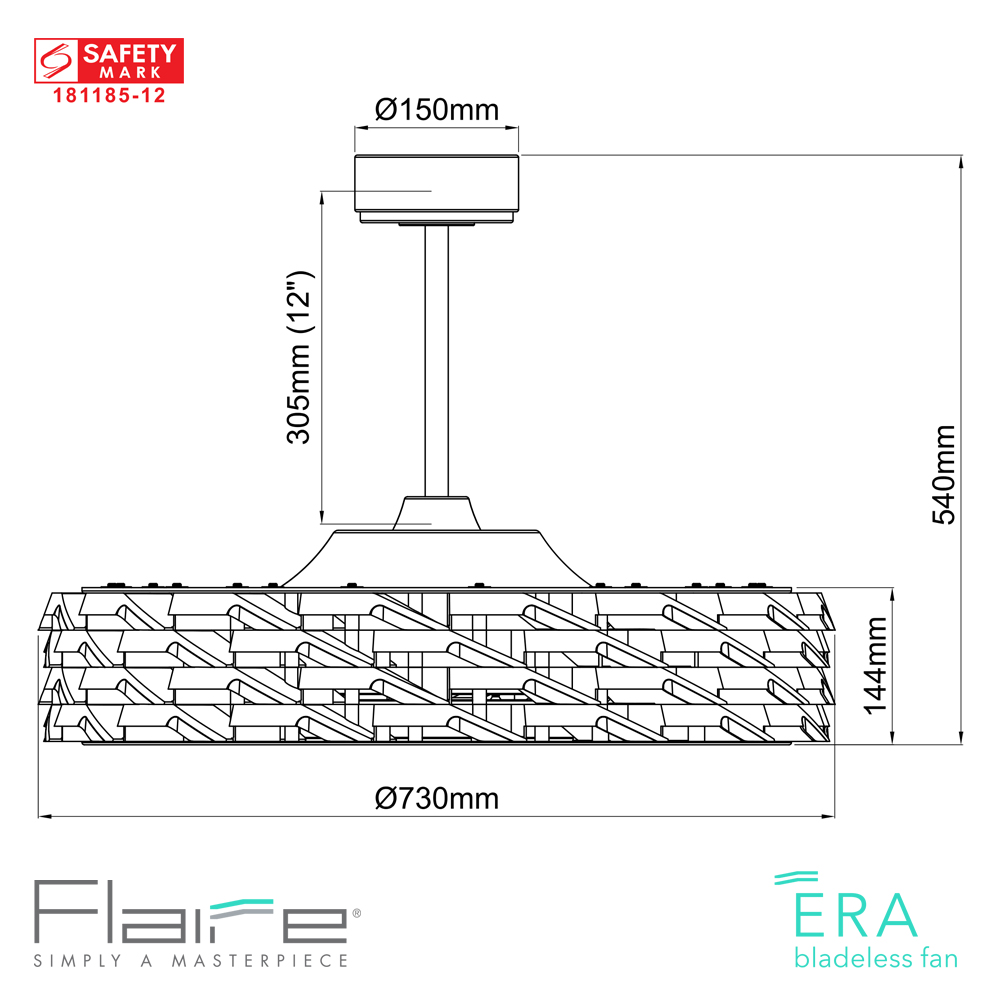

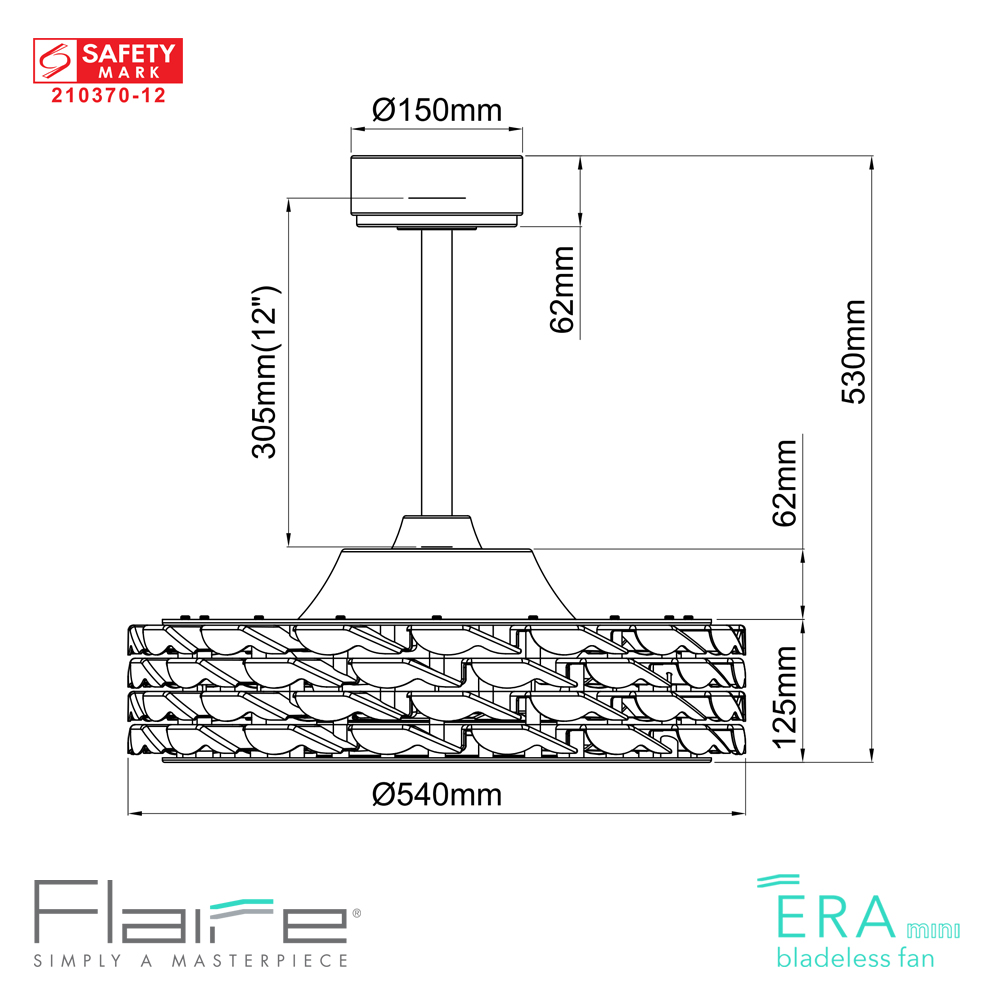

Recommended ceiling height Install with 12″ downrod* Install with hugger/flush mount *
9.0′ or 2.75m 7′ 3″ or 2.21m 8′ 3″ or 2.52m
8.5′ or 2.60m 6′ 9″ or 2.06m 7′ 9″ or 2.37m
8.0′ or 2.44m 6′ 3″ or 1.90m 7′ 3″ or 2.21m

*Final measurement from floor to bottom of fan.

  21″ 29″
Model: DC-601 mini DC-601
Motor: Innovative DC Motor 153 Innovative DC Motor 153
Voltage: 220-240V/50Hz 220-240V/50Hz
Blade: Bladeless Bladeless
Length: 540mm (21″) 730mm (29″)
Lightkit * 24W LED-RGB * 36W LED-RGB
  * 10W Tranquil Light * 15W Tranquil Light
RPM: 210 – 360 90 – 250
Airflow: 1050 – 1930 (CFM) 1586 – 4581 (CFM)
Velocity: 350 – 780 (FPM) 330 – 1050 (FPM)
Decibels: dB 40 – 50 dB 31 – 50
Watt: 61W (Fan + All Lights) 103W (Fan + All Lights)
  31W (Fan Only) 60W (Fan Only)

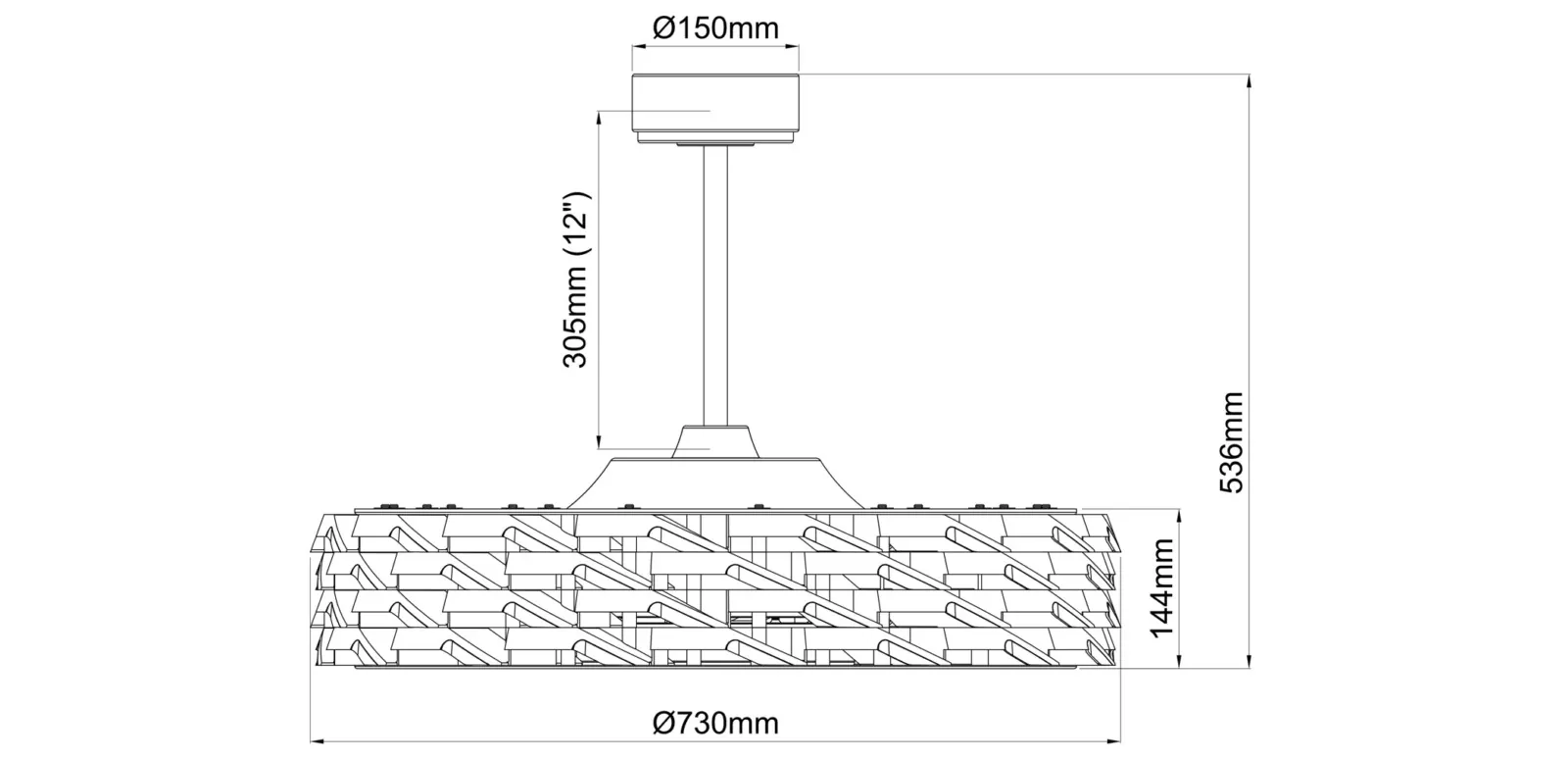

Hanger Bracket

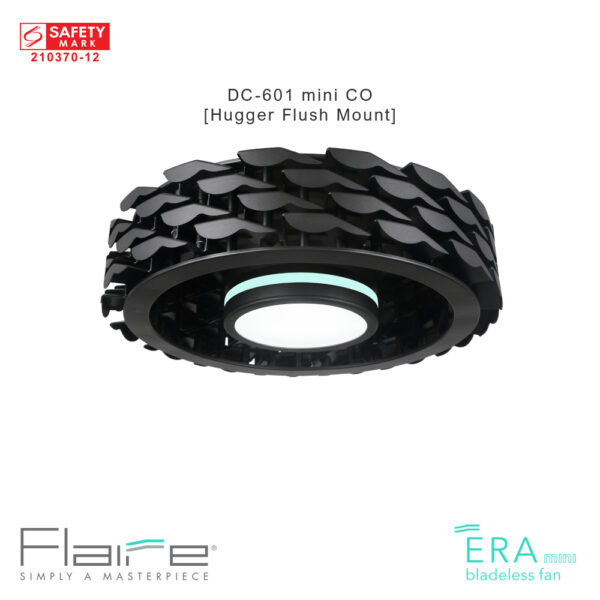

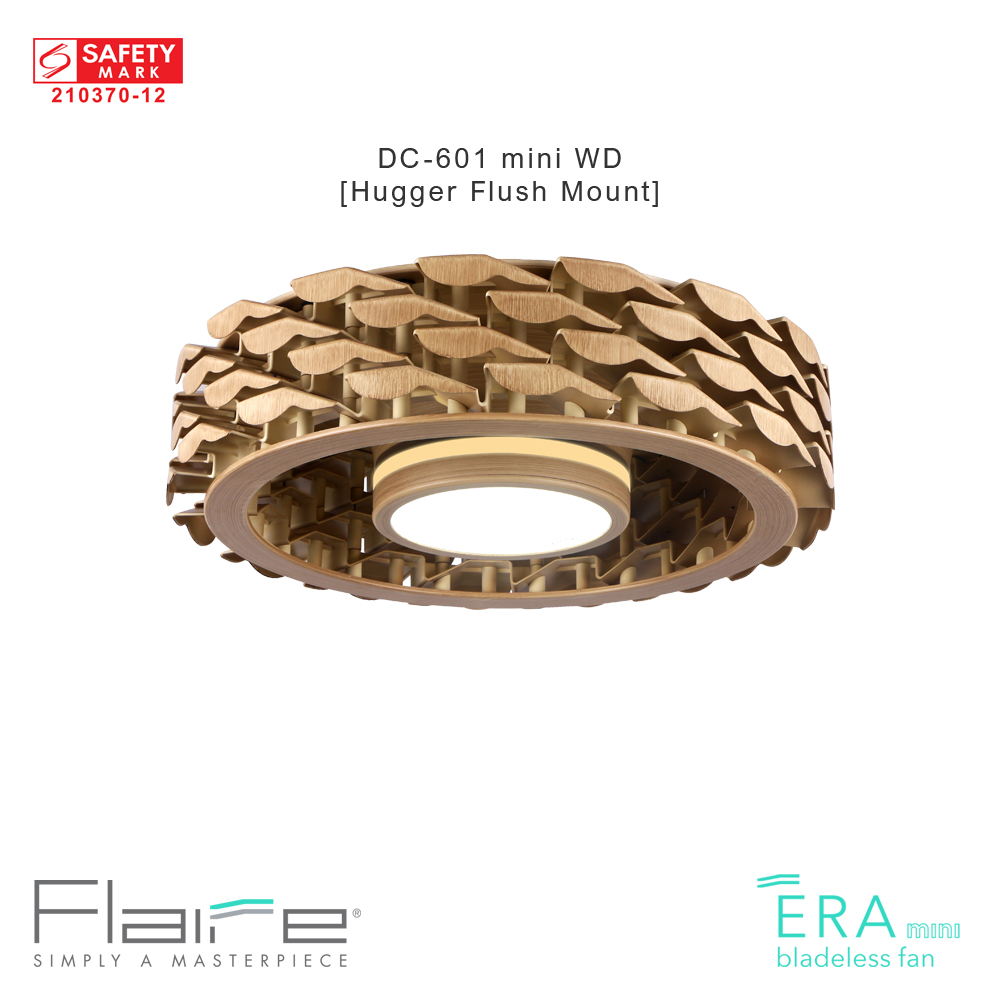

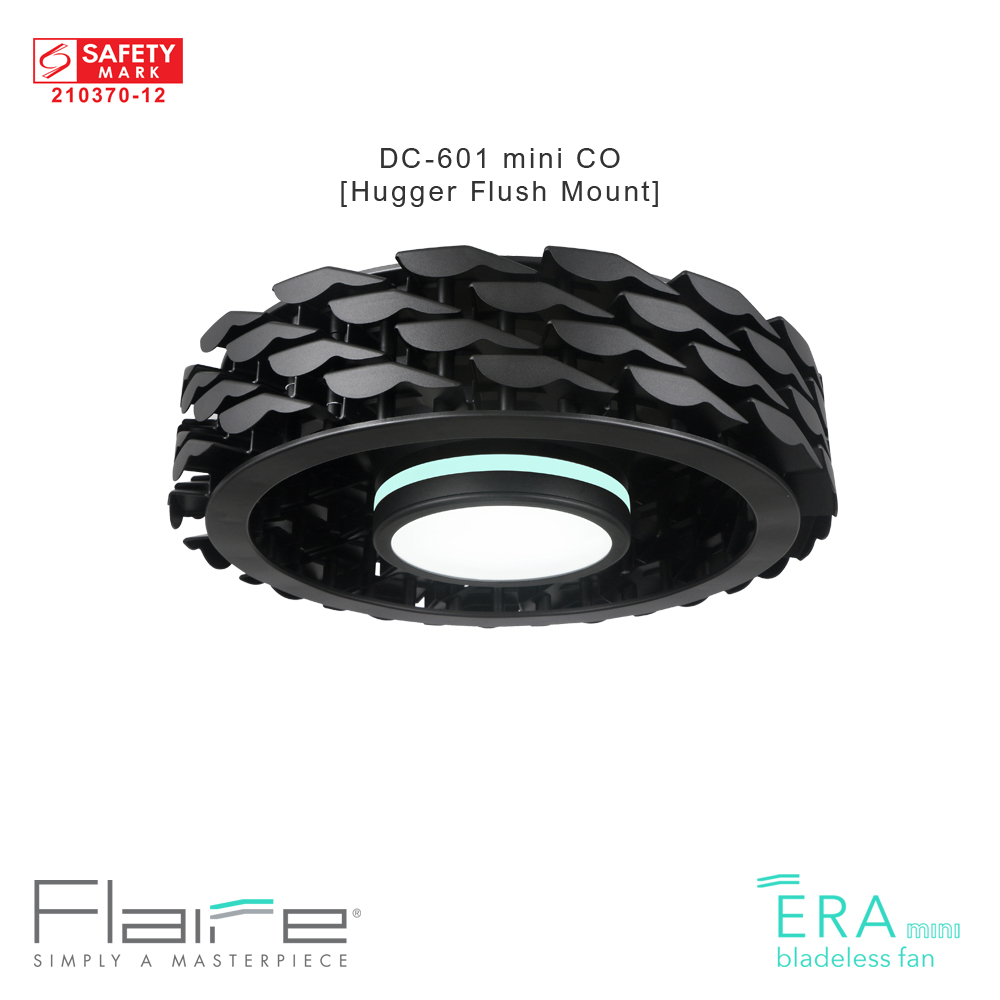

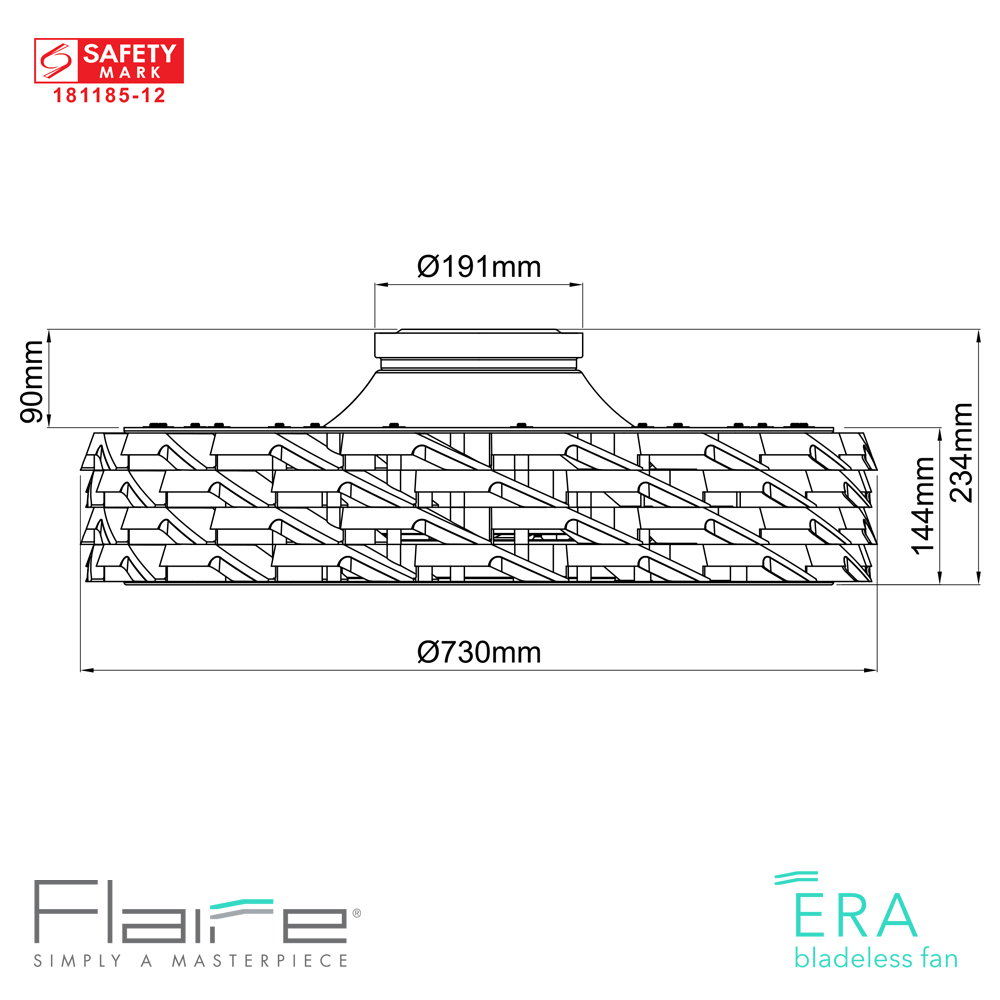

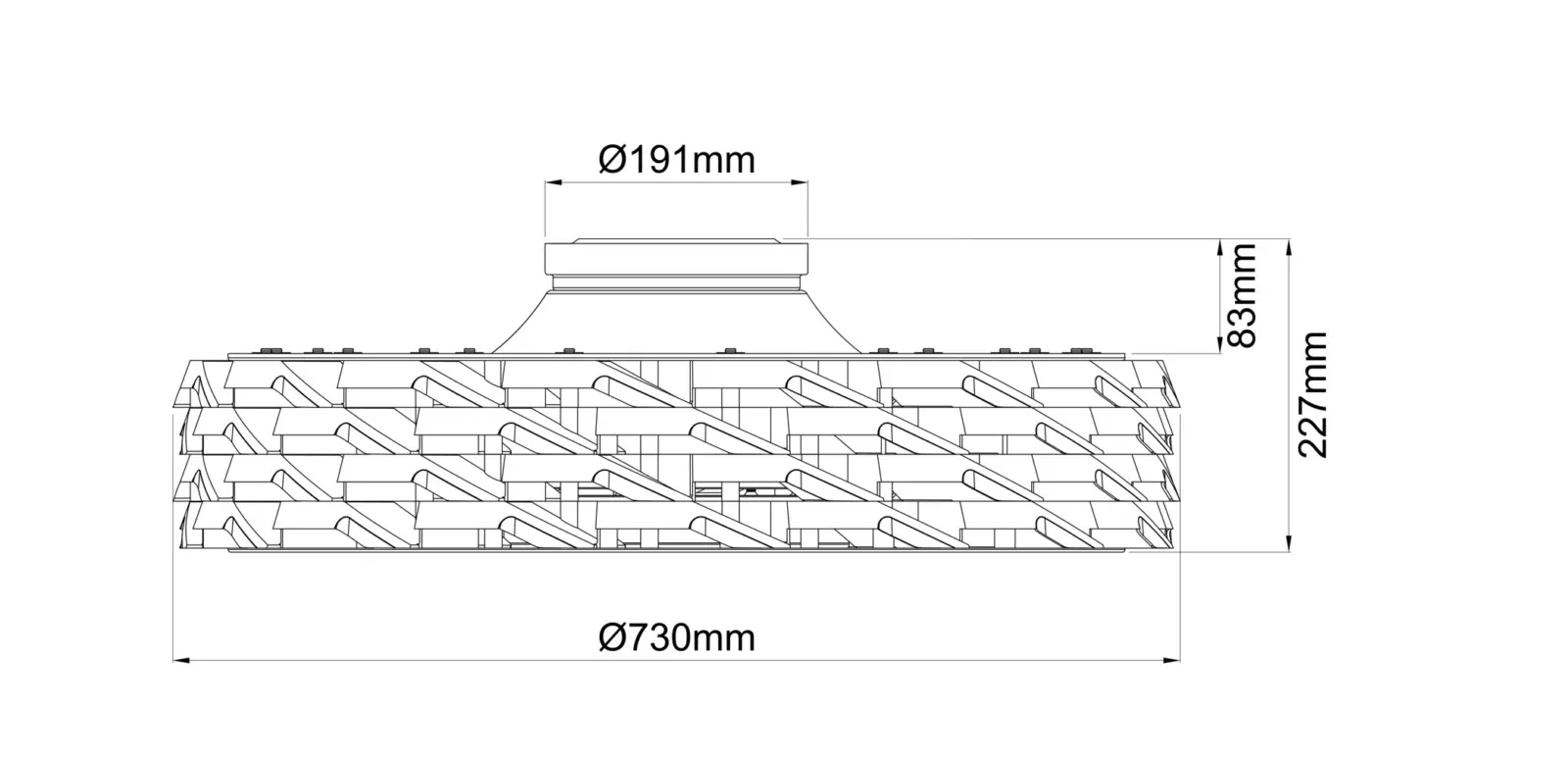

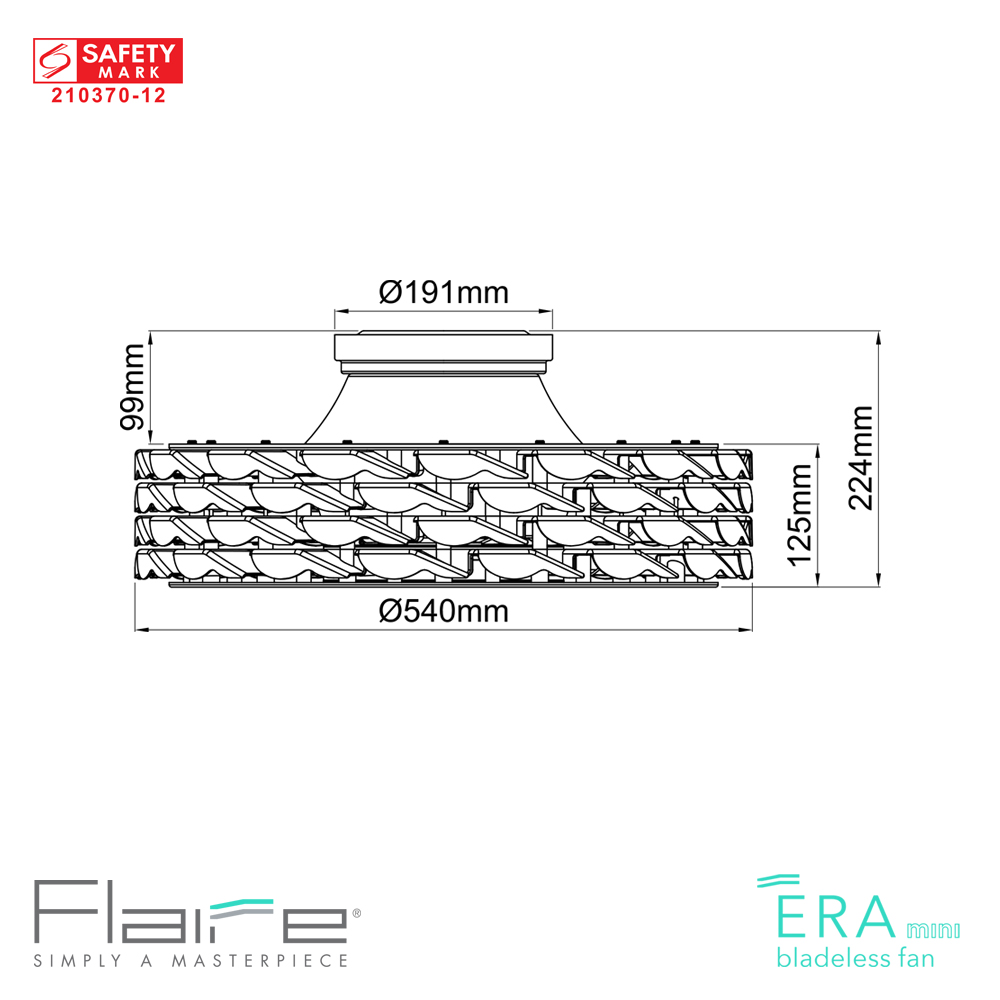

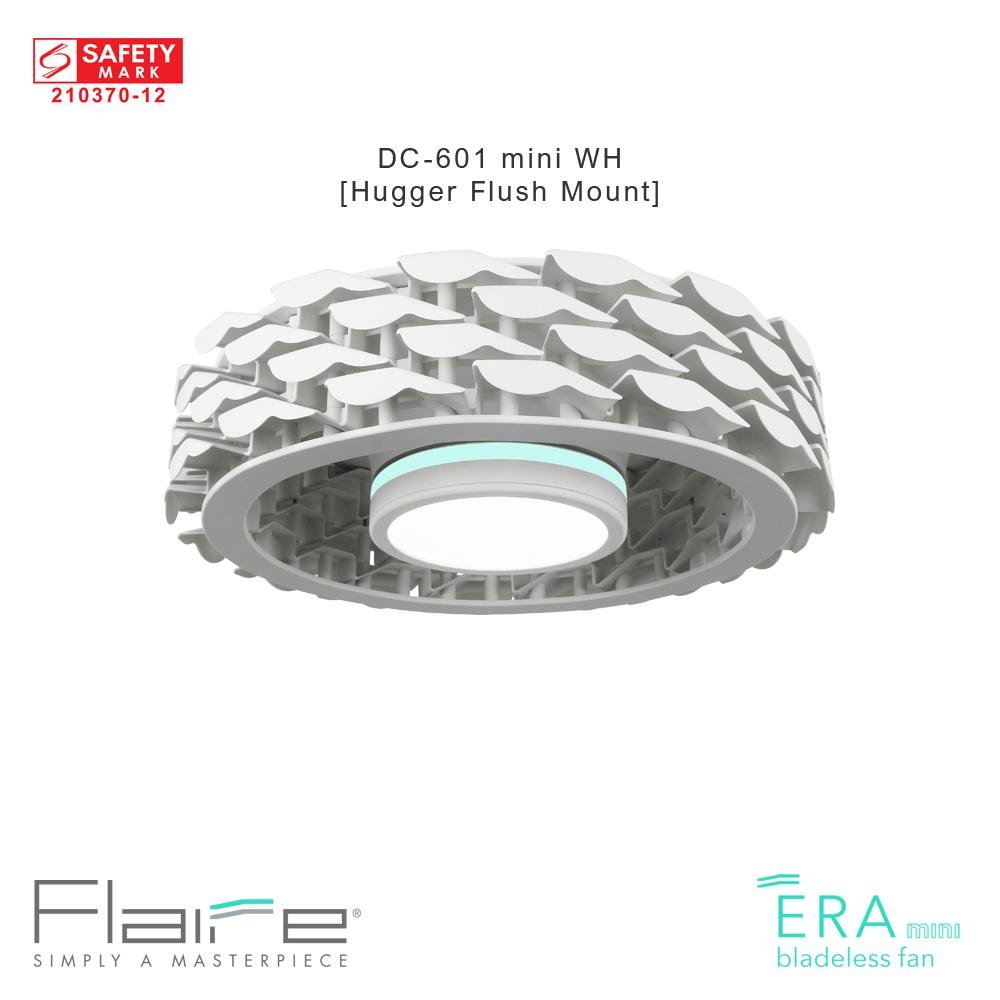

Hugger / Flush Mount



Model: DC-F630 / DC-F626
Speed: 6 Speeds
Function: Light dimmer / Natural Wind / Forward Reverse / Timer
  • 3 Year Warranty on spare parts (remote control & led), transport & service charge.
  • 10 Years Warranty on dc motor.
  • Rate inclusive of GST & installation with conditions.
  • Scaffolding required for ceiling height above 3.6 meter @ $250.
  • Assessment / inspection fee @ $109 (complex ceiling structure – attic, loft & high ceiling).

Additional information

Color

CO, WD, WH
Size

21", 29"
